Resource Health Deployment Guide⚓︎

The Resource Health Building Block (BB) provides a flexible framework for monitoring the health and status of resources within the EOEPCA platform. This includes core platform services as well as derived or user-provided resources such as datasets, workflows, or user applications.

Introduction⚓︎

The Resource Health BB allows you to:

  • Define and schedule automated health checks (e.g. daily, hourly).
  • Observe and visualise check outcomes via a web dashboard.
  • Integrate with external services (e.g. IAM for OIDC authentication, Data Access, Resource Catalogue).
  • Store results in OpenSearch, optionally visualizing them using OpenSearch Dashboards.
  • Collect telemetry via OpenTelemetry, enabling advanced monitoring and alerting.

Components Overview⚓︎

  1. Resource Health Web
  • Dashboard and front-end for viewing health checks and results.
  • By default, can be secured with OIDC authentication (e.g. via Keycloak).
  1. Resource Health API(s)
  • Telemetry API for gathering check results and metrics.
  • Health Checks API (Check Manager) for listing, scheduling, and managing checks.
  1. Health Check Runner
  • A flexible engine that executes your custom health checks at scheduled intervals.
  1. Mock API (optional sample)
  • An example test resource used in demonstration checks (e.g. an hourly check to a mock endpoint).
  1. OpenSearch & OpenSearch Dashboards
  • Stores logs, results, and trace data from your checks.
  • Provides advanced visualisation and analytics features.
  1. OpenTelemetry Collector
  • Receives telemetry from health checks and forward them to OpenSearch.

Prerequisites⚓︎

Before deploying the Resource Health Building Block, ensure you have the following:

Component Requirement Documentation Link
Kubernetes Cluster (tested on v1.32) Installation Guide
Git Properly installed Installation Guide
Helm Version 3.5 or newer Installation Guide
Helm plugins helm-git: Version 1.3.0 tested Installation Guide
kubectl Configured for cluster access Installation Guide
Ingress Controller Properly installed (e.g., NGINX) Installation Guide
Internal TLS Certificates ClusterIssuer for internal certificates Internal TLS Setup

Clone the Deployment Guide Repository:

git clone https://github.com/EOEPCA/deployment-guide
cd deployment-guide/scripts/resource-health

Validate your environment:

bash check-prerequisites.sh

This script checks common prerequisites, including your Kubernetes/Helm installation, Git, and any required Helm plugins.

Deployment Steps⚓︎

1. Run the Configuration Script⚓︎

The configure-resource-health.sh script gathers basic configuration inputs (such as your internal ClusterIssuer for TLS, storage class, etc.) and generates a generated-values.yaml that tailors the Resource Health deployment to your environment.

bash configure-resource-health.sh

During execution, you will be prompted for:

  • INGRESS_HOST: Hostname.
  • INTERNAL_CLUSTER_ISSUER: Name of the cert-manager ClusterIssuer for internal TLS. (Default: eoepca-ca-clusterissuer)
  • PERSISTENT_STORAGECLASS: Storage class for persistent volumes. (Default: standard)

2. Create a Keycloak Client⚓︎

A Keycloak client is required for the ingress protection of the Processing BB OAPIP Engine. The client can be created using the Crossplane Keycloak provider via the Client CRD.

source ~/.eoepca/state
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: ${RESOURCE_HEALTH_CLIENT_ID}-keycloak-client
  namespace: iam-management
stringData:
  client_secret: ${RESOURCE_HEALTH_CLIENT_SECRET}
---
apiVersion: openidclient.keycloak.m.crossplane.io/v1alpha1
kind: Client
metadata:
  name: ${RESOURCE_HEALTH_CLIENT_ID}
  namespace: iam-management
spec:
  forProvider:
    realmId: ${REALM}
    clientId: ${RESOURCE_HEALTH_CLIENT_ID}
    name: Resource Health
    description: Resource Health OIDC
    enabled: true
    accessType: CONFIDENTIAL
    rootUrl: ${HTTP_SCHEME}://resource-health.${INGRESS_HOST}
    baseUrl: ${HTTP_SCHEME}://resource-health.${INGRESS_HOST}
    adminUrl: ${HTTP_SCHEME}://resource-health.${INGRESS_HOST}
    serviceAccountsEnabled: true
    directAccessGrantsEnabled: true
    standardFlowEnabled: true
    oauth2DeviceAuthorizationGrantEnabled: true
    useRefreshTokens: true
    authorization:
      - allowRemoteResourceManagement: false
        decisionStrategy: UNANIMOUS
        keepDefaults: true
        policyEnforcementMode: ENFORCING
    validRedirectUris:
      - "/*"
    webOrigins:
      - "/*"
    clientSecretSecretRef:
      name: ${RESOURCE_HEALTH_CLIENT_ID}-keycloak-client
      key: client_secret
  providerConfigRef:
    name: provider-keycloak
    kind: ProviderConfig
EOF

The Client should be created successfully.

3. Deploy the Resource Health BB (Helm)⚓︎

  1. Apply Secrets

bash apply-secrets.sh
This script creates the necessary secrets for the Resource Health BB.

  1. Install or upgrade Resource Health

Note: While the Resource Health BB is not yet in the official EOEPCA Helm charts, you can install it directly from the GitHub repository.

  • Clone the Resource Health repository and update dependencies:

    git clone -b 2.0.0 https://github.com/EOEPCA/resource-health.git reference-repo
helm dependency update reference-repo/resource-health-reference-deployment
helm dependency build reference-repo/resource-health-reference-deployment

  • Install or upgrade the Resource Health Helm chart:

    helm upgrade -i resource-health reference-repo/resource-health-reference-deployment \
  -f generated-values.yaml \
  -n resource-health --create-namespace

As part of this deployment, you will have a preconfigured healthcheck that runs every minute.

3. Configure Ingress⚓︎

By default, Resource Health is designed to be flexible with Ingress and OIDC configurations.

For the purpose of this guide, the configuration script created a sample Ingress resource in generated-ingress.yaml that you can apply or adapt to your environment. The output depends on the ingress controller you have set in the ~/.eoepca/state file.

  • APISIX
kubectl apply -f apisix/plugin-api-auth.yaml -n resource-health
kubectl apply -f apisix/plugin-browser-auth.yaml -n resource-health
kubectl apply -f generated-ingress.yaml -n resource-health
  • Nginx
kubectl apply -f generated-ingress.yaml -n resource-health

4. Configure Keycloak Client⚓︎

To ensure your Keycloak user has proper permissions in OpenSearch, you must configure role mapping explicitly.

If you are using Crossplane:⚓︎

kubectl apply -f keycloak.yaml

OR If you are configuring Keycloak manually, follow these steps:⚓︎

Step 1: Create a Keycloak Realm Role⚓︎

  • Log into your Keycloak (auth.${INGRESS_HOST}).
  • Navigate to your realm (eoepca).
  • Click on Realm Roles, then click Create Role.
  • Create a new role named opensearch_user

Step 2: Assign the Role to your Keycloak User⚓︎

  • Still in Keycloak, go to Users and select your user (e.g. eoepcauser).
  • Click on the Role Mappings tab.
  • Assign the newly created opensearch_user realm role to this user.

Step 3: Add the Realm Role Mapper to your Keycloak Client⚓︎

  • Go to Clients and select your resource-health client.
  • Navigate to Client Scopes → resource-health-dedicated and click Add Mapper.

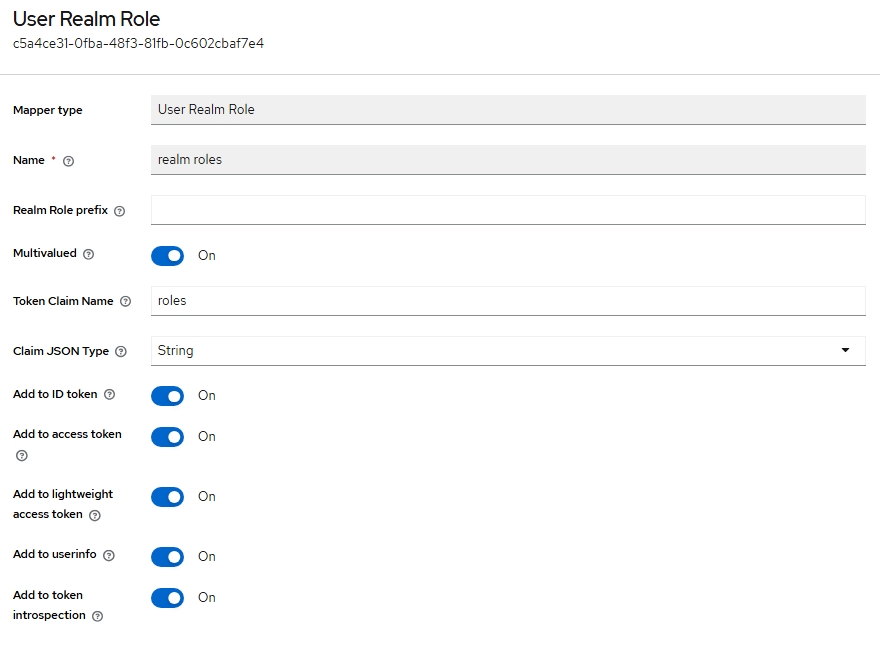

  • Configure the User Realm Role template mapper as follows:
Field Value
Mapper Type User Realm Role
Name realm roles
Multivalued ON ✅
Token Claim Name roles
Claim JSON Type String
Add to ID token ON ✅
Add to Access token ON ✅
Add to Userinfo ON (recommended) ✅

This configuration ensures Keycloak will correctly include realm roles in the JWT.

Dashboard

4. Monitor the Deployment⚓︎

Once deployed, you will have to wait a minute until the first health check runs before you can access the Resource Health Web dashboard.

After the Helm installation finishes, check that all pods are running in the resource-health namespace:

kubectl get all -n resource-health

Validation⚓︎

  1. Run the validation script:
bash validation.sh

Usage⚓︎

Authentication⚓︎

The Resource Health APIs are protected by OIDC authentication. Before making API requests, obtain an access token:

source ~/.eoepca/state

ACCESS_TOKEN=$(curl -s -X POST "https://auth.${INGRESS_HOST}/realms/eoepca/protocol/openid-connect/token" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=password" \
  -d "client_id=${RESOURCE_HEALTH_CLIENT_ID}" \
  -d "client_secret=${RESOURCE_HEALTH_CLIENT_SECRET}" \
  -d "username=${KEYCLOAK_TEST_USER}" \
  -d "password=${KEYCLOAK_TEST_PASSWORD}" \
  | jq -r '.access_token')

echo "Access Token: ${ACCESS_TOKEN:0:50}..."

Alternatively, for machine-to-machine access without a user context, use the client credentials grant:

ACCESS_TOKEN=$(curl -s -X POST "https://auth.${INGRESS_HOST}/realms/eoepca/protocol/openid-connect/token" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials" \
  -d "client_id=${RESOURCE_HEALTH_CLIENT_ID}" \
  -d "client_secret=${RESOURCE_HEALTH_CLIENT_SECRET}" \
  | jq -r '.access_token')

Note: If you are not using OIDC authentication, skip this section and omit the -H "Authorization: Bearer ${ACCESS_TOKEN}" header from all curl commands below.

View Available Templates⚓︎

Health check templates define reusable patterns for common monitoring scenarios:

curl -s "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/check_templates/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  | jq '.data[].id'

The default deployment includes: - simple_ping - Checks if an endpoint responds with an expected HTTP status code - generic_script_template - Runs custom pytest scripts for advanced health checks

To view details of a specific template:

curl -s "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/check_templates/simple_ping" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" | jq

Create a Health Check⚓︎

The Resource Health API uses JSON:API format. Let’s create a health check that verifies Google is reachable:

cat <<EOF | tee healthcheck-google.json | jq
{
  "data": {
    "type": "check",
    "attributes": {
      "schedule": "*/1 * * * *",
      "metadata": {
        "name": "google-ping-check",
        "description": "Check if Google is reachable",
        "template_id": "simple_ping",
        "template_args": {
          "endpoint": "https://www.google.com",
          "expected_status_code": 200
        }
      }
    }
  }
}
EOF

Register the health check:

curl -X POST "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/checks/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  -H "Content-Type: application/vnd.api+json" \
  -d @healthcheck-google.json | jq

Note the id field in the response - this is the UUID assigned to your health check.

List Health Checks⚓︎

View all registered health checks:

curl -s "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/checks/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  | jq '.data[] | {id: .id, name: .attributes.metadata.name, schedule: .attributes.schedule}'

The health check is implemented as a Kubernetes CronJob:

kubectl get cronjobs -n resource-health

The CronJob name matches the UUID of the health check.

Trigger a Health Check Manually⚓︎

Rather than waiting for the scheduled time, you can trigger a health check immediately:

# Get the check ID
CHECK_ID=$(curl -s "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/checks/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  | jq -r '.data[0].id')
echo "Check ID: $CHECK_ID"

# Create a manual job from the CronJob
kubectl create job --from=cronjob/${CHECK_ID} manual-google-check -n resource-health

# Wait for completion
kubectl wait --for=condition=complete job/manual-google-check -n resource-health --timeout=120s

# View results
kubectl logs job/manual-google-check -n resource-health --all-containers 2>/dev/null | tail -15

You should see pytest output showing the test passed.

View Health Check Results⚓︎

Via Telemetry API:

curl -s "https://resource-health.${INGRESS_HOST}/api/telemetry/v1/spans/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" | jq

If no data appears yet, wait a moment for the checks to complete and telemetry to be collected.

Via Web Dashboard:

Visit https://resource-health.${INGRESS_HOST} to see all health checks and their results in a visual interface.

Delete a Health Check⚓︎

# Get the check ID
CHECK_ID=$(curl -s "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/checks/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  | jq -r '.data[] | select(.attributes.metadata.name=="google-ping-check") | .id')
echo "Deleting check: $CHECK_ID"

# Delete the check
curl -X DELETE "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/checks/${CHECK_ID}" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}"

# Verify deletion
curl -s "https://resource-health.${INGRESS_HOST}/api/healthchecks/v1/checks/" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  | jq '.data[].attributes.metadata.name'

The corresponding CronJob should also be deleted:

kubectl get cronjobs -n resource-health

Defining Health Checks via Helm⚓︎

Health checks can also be pre-configured in the Helm values. Add templates under resource-health.healthchecks.templates:

resource-health:
  healthchecks:
    use_template_configmap: True
    templates:
      my_custom_template.py: |
        import check_backends.k8s_backend.template_utils as tu

        CUSTOM_SCRIPT = """
        import requests
        from os import environ

        def test_custom_check():
            response = requests.get(environ["TARGET_URL"])
            assert response.status_code == 200
            assert "expected_content" in response.text
        """

        class CustomCheckArguments(tu.BaseModel):
            model_config = tu.ConfigDict(extra="forbid")
            target_url: str = tu.Field(json_schema_extra={"format": "textarea"})

        CustomCheck = tu.simple_runner_template(
            template_id="custom_check",
            argument_type=CustomCheckArguments,
            label="Custom Check Template",
            description="A custom health check template",
            script_url=tu.src_to_data_url(CUSTOM_SCRIPT),
            runner_env=lambda template_args, userinfo: {
                "TARGET_URL": template_args.target_url,
            },
            user_id=lambda template_args, userinfo: userinfo["username"],
            otlp_tls_secret="resource-health-healthchecks-certificate",
        )

Apply the updated configuration:

helm upgrade resource-health reference-repo/resource-health-reference-deployment \
  -f generated-values.yaml \
  -n resource-health

Creating Health Checks via Web UI⚓︎

  1. Visit the Resource Health Web dashboard at https://resource-health.${INGRESS_HOST}
  2. Click on Create new check
  3. Select a template (e.g., “Simple ping template”)
  4. Fill in the required fields: - Name: A descriptive name for your check - Description: What this check monitors - Schedule: A cron expression (e.g., */5 * * * * for every 5 minutes) - Template Arguments: Endpoint URL, expected status code, etc.
  5. Click Create to register the health check

The check will immediately appear in the dashboard and begin running according to its schedule.

Further Reading⚓︎
