Resource Registration Deployment Guide⚓︎

The Resource Registration Building Block enables data and metadata ingestion into platform services. It handles:

  • Metadata registration into Resource Discovery
  • Data registration into Data Access services
  • Resource visualisation configuration

Introduction⚓︎

The Resource Registration Building Block manages resource ingestion into the platform for discovery, access and collaboration. It supports:

  • Datasets (EO data, auxiliary data)
  • Processing workflows
  • Jupyter Notebooks
  • Web services and applications
  • Documentation and metadata

The BB integrates with other platform services to enable:

  • Automated metadata extraction
  • Resource discovery indexing
  • Access control configuration
  • Usage tracking

Components Overview⚓︎

The Resource Registration BB comprises three main components:

  1. Registration API
    An OGC API Processes interface for registering, updating, or deleting resources on the local platform.

  2. Harvester
    Automates workflows (via Flowable BPMN) to harvest data from external sources and register them in the platform.

  3. Common Registration Library
    A Python library consolidating upstream packages (e.g. STAC tools, eometa tools) for business logic in workflows and resource handling.

Prerequisites⚓︎

Before deploying the Resource Registration Building Block, ensure you have the following:

Component Requirement Documentation Link
Kubernetes Cluster (tested on v1.28) Installation Guide
Helm Version 3.7 or newer Installation Guide
kubectl Configured for cluster access Installation Guide
TLS Certificates Managed via cert-manager or manually TLS Certificate Management Guide
Ingress Controller Properly installed (e.g., NGINX) Installation Guide

Clone the Deployment Guide Repository:

git clone https://github.com/EOEPCA/deployment-guide
cd deployment-guide/scripts/resource-registration

Validate your environment:

Run the validation script to ensure all prerequisites are met:

bash check-prerequisites.sh

Deployment Steps⚓︎

1. Run the Configuration Script⚓︎

Generate configuration files and prepare deployment:

bash configure-resource-registration.sh

Configuration Parameters

During the script execution, you will be prompted to provide:

  • INGRESS_HOST: Base domain for ingress hosts.
    • Example: example.com
  • CLUSTER_ISSUER: Cert-Manager ClusterIssuer for TLS certificates.
    • Example: letsencrypt-http01-apisix
  • FLOWABLE_ADMIN_USER: Admin username for Flowable.
    • Default: eoepca
  • FLOWABLE_ADMIN_PASSWORD: Admin password for Flowable.
    • Default: eoepca
  • PERSISTENT_STORAGECLASS: Storage Class for persistent volumes (ReadWriteOnce) - e.g. for Flowable database.
    • Default: local-path
  • SHARED_STORAGECLASS: Storage Class for shared volumes (ReadWriteMany) - e.g. harvested eodata.
    • Default: standard

      Note that RWX is specified for the eodata volume to which the harvester downloads harvested assets. A RWX volume is assumed here, in anticipation that other services (pods) will require to exploit the data assets - such as the EO Data Server shown in example later in this page.

2. Apply Kubernetes Secrets⚓︎

Create required secrets:

bash apply-secrets.sh

Secrets Created:

  • flowable-admin-credentials:
    Contains Flowable admin username and password

3. Deploy the Registration API Using Helm⚓︎

The Registration API provides a RESTful interface through which resources can be directly registered, updated, or deleted.

Deploy the Registration API using the generated values file.

helm repo add eoepca-dev https://eoepca.github.io/helm-charts-dev
helm repo update eoepca-dev
helm upgrade -i registration-api eoepca-dev/registration-api \
  --version 2.0.0-rc2 \
  --namespace resource-registration \
  --create-namespace \
  --values registration-api/generated-values.yaml

Deploy the ingress for the Registration API:

kubectl apply -f registration-api/generated-ingress.yaml

4. Deploy the Registration Harvester Using Helm⚓︎

The Registration Harvester automates resource ingestion workflows using Flowable BPMN.

Deploy Flowable Engine:

helm repo add flowable https://flowable.github.io/helm/
helm repo update flowable
helm upgrade -i registration-harvester-api-engine flowable/flowable \
  --version 7.0.0 \
  --namespace resource-registration \
  --create-namespace \
  --values registration-harvester/generated-values.yaml

Deploy the ingress for the Flowable Engine:

kubectl apply -f registration-harvester/generated-ingress.yaml

Deploy Registration Harvester Worker:

The BPMN workflows executed by the Flowable engine are implemented by workers that respond to ‘topics’ referenced as steps in the BPMN definition. These workers perform tasks such as harvesting data from external sources, processing data, and registering metadata.

By way of example, a worker is deployed that harvests Landast data from USGS.

helm repo add eoepca-dev https://eoepca.github.io/helm-charts-dev
helm repo update eoepca-dev
helm upgrade -i landsat-harvester-worker eoepca-dev/registration-harvester \
  --version 2.0.0-rc2.1 \
  --namespace resource-registration \
  --create-namespace \
  --values registration-harvester/generated-values.yaml

The Landsat harvester relies upon credentials for the USGS service. These can be obtained via free sign-up at the USGS Machine-to-Machine (M2M) API.

The Landsat harvester worker expects a Kubernetes secret that provides these (and other) credentials.

The Generate Application Token page should be used to create a token with the M2M API scope - which can then be set into the following environment variables for inclusion in the secret.

export M2M_USER='your-username'
export M2M_PASSWORD='your-generated-token'

Now we can create the landsat-harvester-secret Kubernetes secret that is expected by the Landsat harvester worker.

source ~/.eoepca/state
kubectl create secret generic landsat-harvester-secret \
  --from-literal=FLOWABLE_USER="$FLOWABLE_ADMIN_USER" \
  --from-literal=FLOWABLE_PASSWORD="$FLOWABLE_ADMIN_PASSWORD" \
  --from-literal=M2M_USER="${M2M_USER}" \
  --from-literal=M2M_PASSWORD="${M2M_PASSWORD}" \
  --namespace resource-registration \
  --dry-run=client -o yaml | kubectl apply -f -

5. Monitor the Deployment⚓︎

Check the status of the deployments:

kubectl get all -n resource-registration

Validation and Usage⚓︎

Check Kubernetes Resources:

Ensure that all Kubernetes resources are running correctly.

kubectl get pods -n resource-registration
  • All pods should be in the Running state.
  • No pods should be in CrashLoopBackOff or Error states.

Automated Validation:

This script performs a series of automated tests to validate the deployment.

bash validation.sh

Registration API Home:

This page provides basic information about the Registration API.

source ~/.eoepca/state
xdg-open "${HTTP_SCHEME}://registration-api.${INGRESS_HOST}/"

Swagger UI Documentation:

Interactive API documentation allowing you to explore and test the Registration API endpoints.

source ~/.eoepca/state
xdg-open "${HTTP_SCHEME}://registration-api.${INGRESS_HOST}/openapi?f=html"

Flowable REST API Swagger UI:

Provides Swagger UI documentation for the Flowable REST API.

source ~/.eoepca/state
xdg-open "${HTTP_SCHEME}://registration-harvester-api.${INGRESS_HOST}/flowable-rest/docs/"

Registering Resources⚓︎

Resource Registration relies on an OGC API Processes interface, through which it provides the Registration API interfaces:

  • Registration: POST /processes/register/execution
  • De-registration: POST /processes/deregister/execution

These interfaces are illustrated below.

Example - Registering a Collection⚓︎

This example registers a Collection resource into the EOEPCA Resource Catalogue instance.

This assumes that the Resource Discovery Building Block has been deployed - offering a STAC endpoint.

Use the following command to register an STAC Collection landsat-ot-c2-l2 - representing the Landsat 8-9 OLI/TIRS Collection 2 Level-2.

This collection is used in later steps as a target for harvesting of some example Landsat data.

source ~/.eoepca/state
curl -X POST "https://registration-api.${INGRESS_HOST}/processes/register/execution" \
  -H "Content-Type: application/json" \
  -d @- <<EOF
{
    "inputs": {
        "source": {"rel": "collection", "href": "https://raw.githubusercontent.com/EOEPCA/registration-harvester/refs/heads/main/etc/collections/landsat/landsat-ot-c2-l2.json"},
        "target": {"rel": "https://api.stacspec.org/v1.0.0/core", "href": "https://resource-catalogue.${INGRESS_HOST}/stac"}
    }
}
EOF
  • source: A valid STAC Collection URL (in this example, hosted on GitHub).
    (Adjust this path according to your input.)
  • target: Your STAC server endpoint where the resource is to be registered.

Validating the Registration⚓︎

source ~/.eoepca/state
xdg-open "${HTTP_SCHEME}://registration-api.${INGRESS_HOST}/jobs"

You should see a new job with the status COMPLETED.

If you have deployed the Resource Discovery Building Block, then the registered Collection will also be available at:

source ~/.eoepca/state
xdg-open "${HTTP_SCHEME}://resource-catalogue.${INGRESS_HOST}/collections/landsat-ot-c2-l2"

Collection De-registration⚓︎

Demonstrates use of the API for resource deregistration…

Skip this step if you are intending to perform the example harvesting of Landsat data - as is illustrated in later steps.

source ~/.eoepca/state
curl -X POST "https://registration-api.${INGRESS_HOST}/processes/deregister/execution" \
  -H "Content-Type: application/json" \
  -d @- <<EOF
{
    "inputs": {
        "id": "landsat-ot-c2-l2",
        "rel": "collection",
        "target": {"rel": "https://api.stacspec.org/v1.0.0/core", "href": "https://resource-catalogue.${INGRESS_HOST}/stac"}
    }
}
EOF

Using the Registration Harvester⚓︎

The Registration Harvester leverages Flowable to automate resource harvesting workflows.

Access the Flowable REST API Swagger UI:

source ~/.eoepca/state
xdg-open "${HTTP_SCHEME}://registration-harvester-api.${INGRESS_HOST}/flowable-rest/docs/"

List Deployed Workflows

Initially only the built-in Demo processes workflow is deployed.

source ~/.eoepca/state
curl -s "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/repository/deployments" \
  -u ${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD} \
  | jq -r '.data[] | "\(.deploymentTime): \(.name)" '

The Demo processes workflow provides a number of example processes.

source ~/.eoepca/state
curl -s "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/repository/process-definitions" \
  -u ${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD} \
  | jq -r '.data[] | "\(.key): \(.name)" '

Example - Deploy Workflow for Landsat harvesting⚓︎

Earlier in this page we deployed the Landsat harvester worker, which is implemented to respond to a specific set of workflow topics - as described by the values deployed with the helm chart:

  • landsat_discover_data (LandsatDiscoverHandler)
  • landsat_continuous_data_discovery (LandsatContinuousDiscoveryHandler)
  • landsat_get_download_urls (LandsatGetDownloadUrlHandler)
  • landsat_download_data (LandsatDownloadHandler)
  • landsat_untar (LandsatUntarHandler)
  • landsat_extract_metadata (LandsatExtractMetadataHandler)
  • landsat_register_metadata (LandsatRegisterMetadataHandler)

To exploit this we deploy the Landsat workflow, comprising two BPMN processes. The main process (Landsat Registration) searches for new data at USGS. For each new scene found, the workflow executes another process (Landsat Scene Ingestion) which performs the individual steps for harvesting and registering the data.

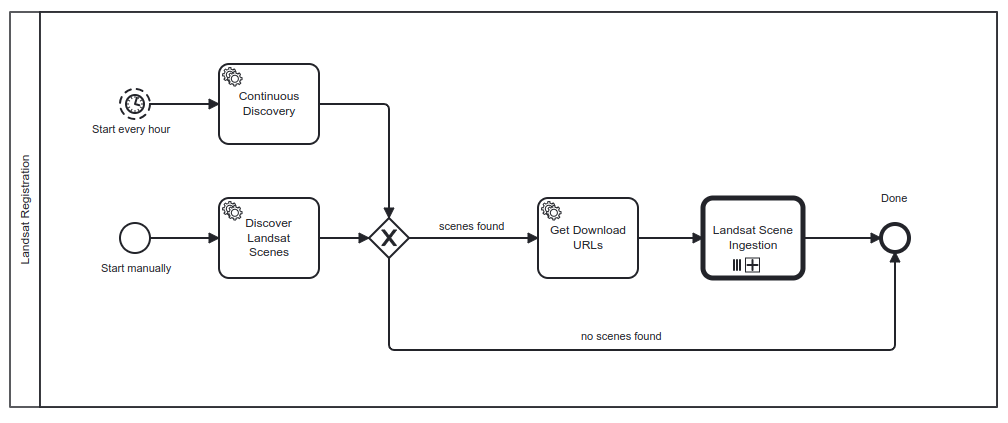

Workflow - Landsat Registration (main)

Deploy the BPMN workflow landsat.bpmn by POST to the Flowable service…

source ~/.eoepca/state
curl -s https://raw.githubusercontent.com/EOEPCA/registration-harvester/refs/heads/main/workflows/landsat.bpmn | \
curl -s -X POST "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/repository/deployments" \
  -u ${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD} \
  -F "landsat.bpmn=@-;filename=landsat.bpmn;type=text/xml" | jq

Landsat Registration

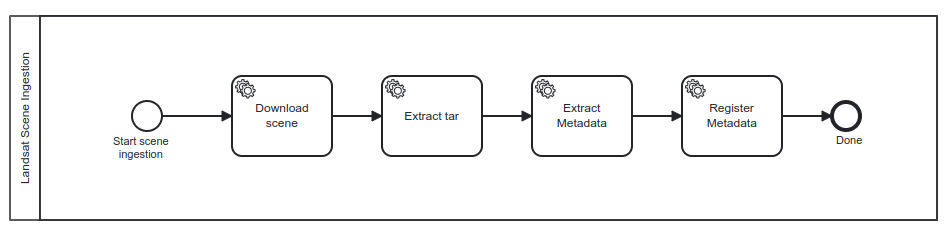

Sub-Workflow Landsat Scene Ingestion

Deploy the BPMN sub-workflow landsat-scene-ingestion.bpmn by POST to the Flowable service…

source ~/.eoepca/state
curl -s https://raw.githubusercontent.com/EOEPCA/registration-harvester/refs/heads/main/workflows/landsat-scene-ingestion.bpmn | \
curl -s -X POST "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/repository/deployments" \
  -u ${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD} \
  -F "landsat-scene-ingestion.bpmn=@-;filename=landsat-scene-ingestion.bpmn;type=text/xml" | jq

Landsat Registration

List Deployed Workflows

Now the landsat workflows and associated processes should be listed as deployed.

Workflows…

source ~/.eoepca/state
curl -s "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/repository/deployments" \
  -u ${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD} \
  | jq -r '.data[] | "\(.deploymentTime): \(.name)" '

Processes…

# Retrieve processes
processes="$( \
  curl -s "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/repository/process-definitions" \
    -u "${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD}" \
  )"

echo -e "\nProcess listing..."
echo "$processes" | jq -r '.data[] | "\(.key): \(.name)"'

# Extract Landsat Workflow process ID
landsat_process_id="$(echo "$processes" | jq -r '[.data[] | select(.name == "Landsat Workflow")][0].id')"
echo -e "\nLandsat process ID: ${landsat_process_id}"

Invoke Landsat Harvesting Workflow⚓︎

source ~/.eoepca/state
curl -s -X POST "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/runtime/process-instances" \
  -u "${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD}" \
  -H "Content-Type: application/json" \
  -d @- <<EOF | jq
{
  "processDefinitionId": "$landsat_process_id",
  "variables": [
    {
      "name": "datetime_interval",
      "type": "string",
      "value": "2024-11-13T10:00:00Z/2024-11-13T11:00:00Z"
    },
    {
      "name": "collections",
      "type": "string",
      "value": "landsat-c2l2-sr"
    },
    {
      "name": "bbox",
      "type": "string",
      "value": "-7,46,3,52"
    }
  ]
}
EOF

Monitor the job progress⚓︎

Logs…

kubectl -n resource-registration logs -f  deploy/landsat-harvester-worker

Use Ctrl-C to exit the log stream.

Process instances…

We are expecting an instance of the main Landsat Workflow process, and for each scene discovered, an instance of the Landsat Scene Ingestion process.

There may be a delay of a few minutes before all expected workflows are shown.

source ~/.eoepca/state
curl -s "https://registration-harvester-api.${INGRESS_HOST}/flowable-rest/service/runtime/process-instances" \
  -u ${FLOWABLE_ADMIN_USER}:${FLOWABLE_ADMIN_PASSWORD} \
  | jq -r '.data[] | "\(.startTime) | \(.id) | \(.processDefinitionName)"'

Check the Catalogue collection⚓︎

We are expecting 5 scenes registered into the Landsat collection.

This may take some time, depending on your download connection to USGS.
Five products are downloaded - each of which is ~850MB.

source ~/.eoepca/state
xdg-open "https://resource-catalogue.${INGRESS_HOST}/collections/landsat-ot-c2-l2/items"

Retain the eodata volume⚓︎

Given the time/bandwidth required to retrieve the harvested data - you may want to ensure that the Persistent Volume is retained for future reuse. For example, to reconnect with the downloaded data in the case that the Resource Registration BB is re-deployed.

Depending on your RWX storage class, the Retain reclaim policy may already be set.

Check reclaim policy of the eodata persistent volume…

 EODATA_PV=$(kubectl get pvc "eodata" -n "resource-registration" -o jsonpath='{.spec.volumeName}')
 POLICY=$(kubectl get pv "$EODATA_PV" -o jsonpath='{.spec.persistentVolumeReclaimPolicy}')
 echo -e "\nVolume Reclaim Policy is: $POLICY\n"

Otherwise, you can patch the persistent volume as follows…

 EODATA_PV=$(kubectl get pvc "eodata" -n "resource-registration" -o jsonpath='{.spec.volumeName}')
 kubectl patch pv "$EODATA_PV" -p '{"spec":{"persistentVolumeReclaimPolicy":"Retain"}}'

Delivery of data assets⚓︎

The default harvesting approach illustrated above maintains the harvested assets into an eodata persistent volume. The metadata records registered with the catalogue assume delivery of these assets via the base URL https://eodata.${INGRESS_HOST}/ - such that the registered STAC Items include asset hrefs that are rooted under this base URL.

Example - Service for asset access⚓︎

By way of an example, a simple NGINX service can be deployed to provide access to these assets - under the service URL https://eodata.${INGRESS_HOST}/ - to correctly resolve the asset hrefs as registered in the STAC Items.

kubectl apply -f registration-harvester/generated-eodata-server.yaml

Visualise with STAC Browser⚓︎

Use STAC Browser to navigate the harvested STAC Collection and the referenced assets.

source ~/.eoepca/state
xdg-open "https://radiantearth.github.io/stac-browser/#/external/resource-catalogue.${INGRESS_HOST}/stac/"

Uninstallation⚓︎

To uninstall the Resource Registration Building Block and clean up associated resources:

helm uninstall landsat-harvester-worker -n resource-registration
kubectl delete -f registration-harvester/generated-ingress.yaml
helm uninstall registration-harvester-api-engine -n resource-registration
kubectl delete -f registration-api/generated-ingress.yaml
helm uninstall registration-api -n resource-registration

kubectl delete namespace resource-registration

Further Reading⚓︎
